| Tensile strength: | |
|---|---|
| Temper: | |
| Thickness: | |
| Width: | |
| Quantity: | |

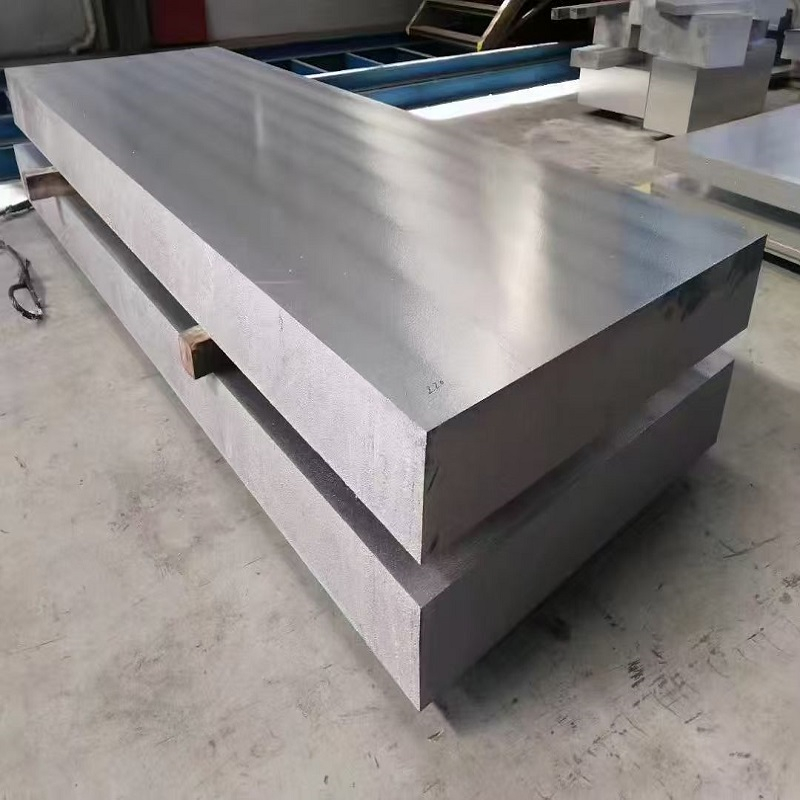

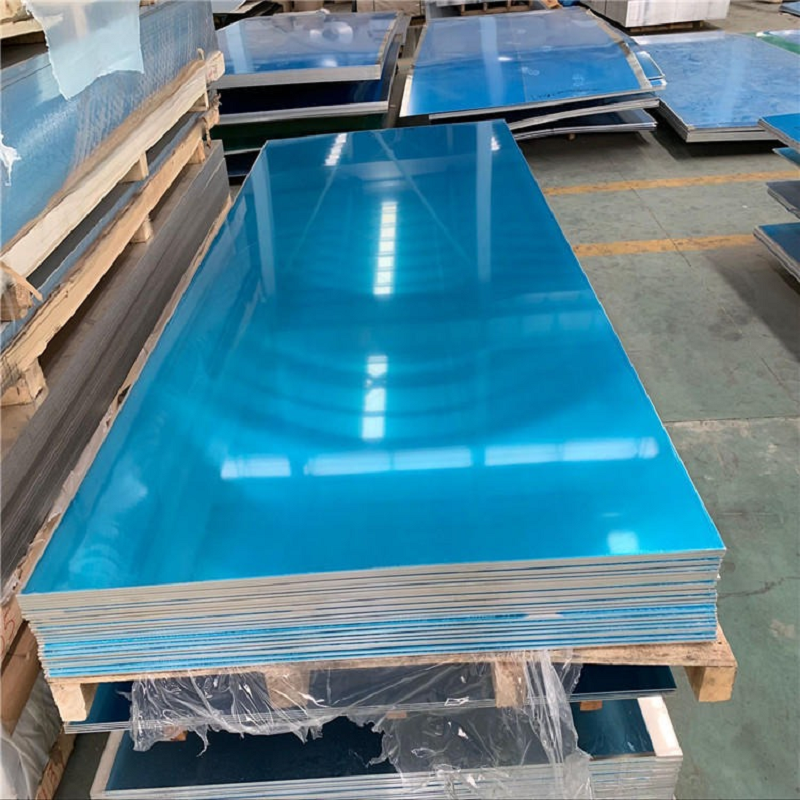

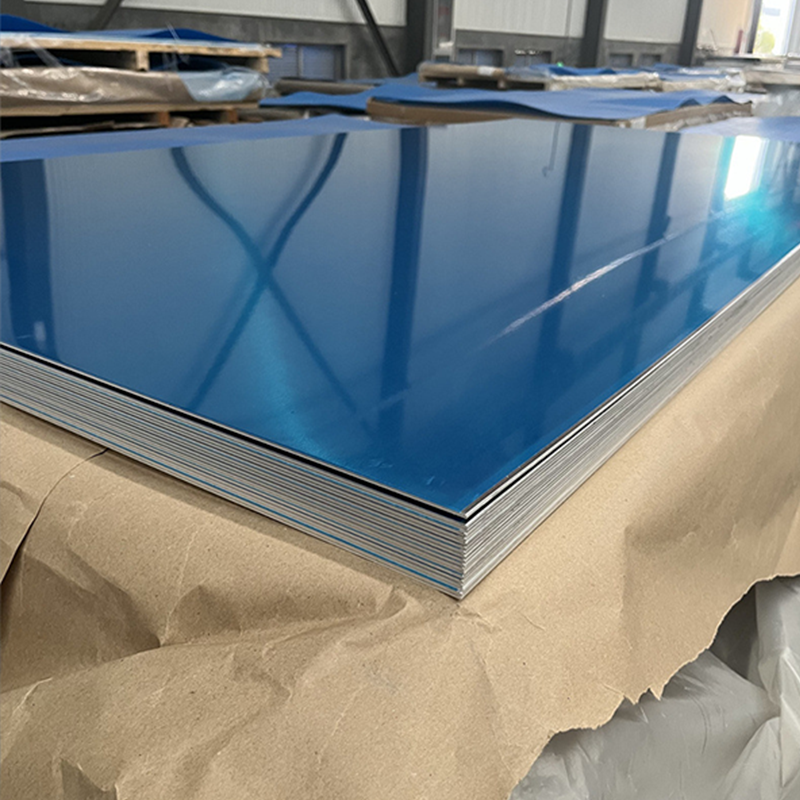

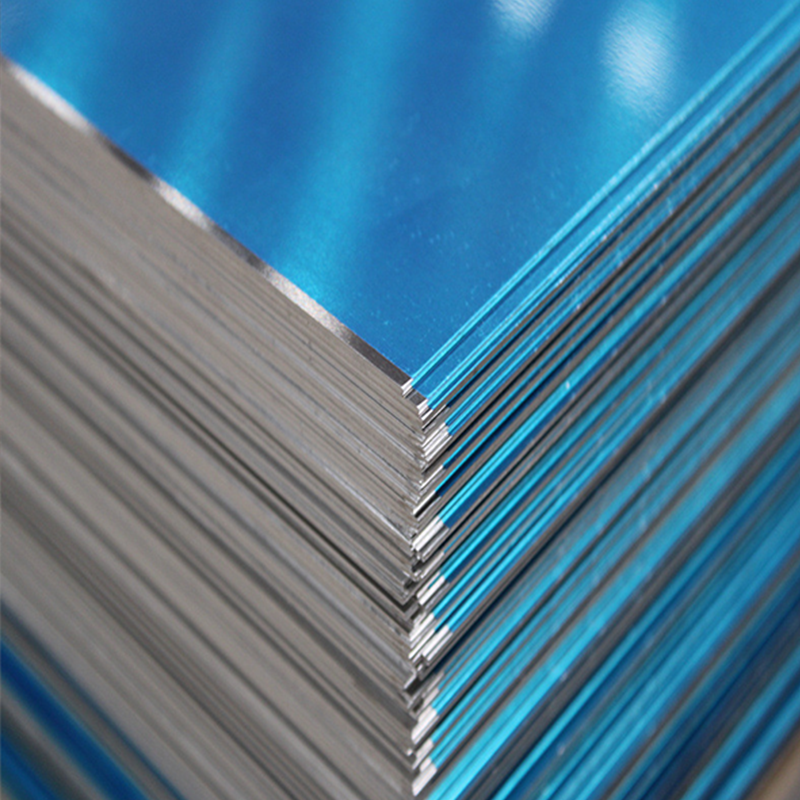

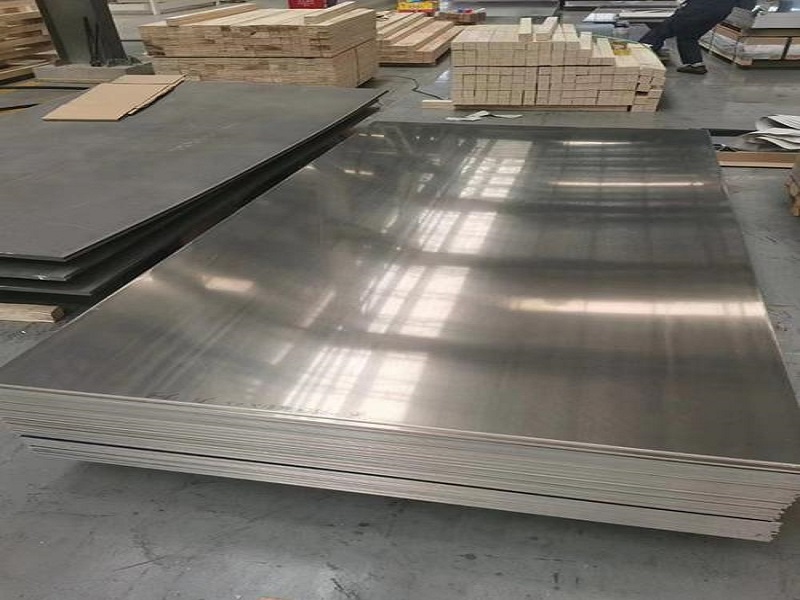

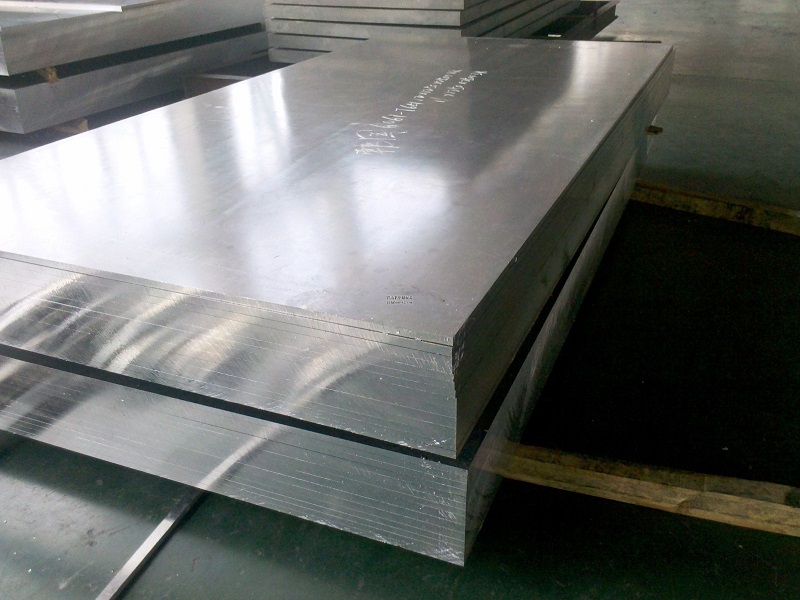

3105 aluminum sheet
Building Decoration: Color coating base, curtain wall panels, aluminum ceiling, roof gutters, suitable for outdoor decoration
Packaging Industry: Beverage bottle caps, food can base material, meet deep drawing forming and food contact standards
Home Furnishing: Shutters, mobile house wall panels, moisture-proof & corrosion-resistant for humid environments
Home Appliance Parts: Lamp bases, air conditioner ventilation pipes, balancing light weight and structural stability
Industrial Parts: Radiators, pipeline guard plates, leveraging thermal conductivity and weather resistance advantages
2.Product Advantages
Excellent Weather & Corrosion Resistance: Al-Mn alloy, dense oxide film on surface, rust-free in outdoor/humid environments, good salt spray resistance
Strong Color Stability: Uniform surface without variegation, no fading after color coating, durable decorative effect
Superior Formability & Processability: Easy to bend, deep draw and weld, no rebound after processing, suitable for complex shapes
Lightweight & High Strength: Low density, higher strength than 1060 pure aluminum, balancing load-bearing and easy installation
Outstanding Cost-effectiveness: Better performance than 3003, lower price than 5052, suitable for bulk engineering procurement
3.Technical Parameters
Parameter | Specification Range | Standard / Notes |
Alloy Grade | 3105, ASTM B209 | GB/T / EN / ASTM |
Sheet Thickness | 0.3–3.0 mm | ±0.02 mm tolerance |
Sheet Width | 1000–1500 mm | ±1 mm tolerance |
Temper | H24, H34 | Semi-hard state |
Tensile Strength | 140–180 MPa | GB/T 228.1 standard |
Elongation | ≥12% | GB/T 228.1 standard |
Surface Treatment | As-rolled, Color-coated | Custom: Anodized |
4.Production process
Batching & Melting: Mix Al/Mn raw materials by ratio, high-temperature melting and impurity removal, cast into aluminum ingots
Hot Rolling: Heat ingots for hot rolling, preliminary thickness reduction and optimize alloy internal microstructure
Cold Rolling: Cold roll to target thickness at room temperature, strict size tolerance control, improve surface finish
Annealing & Tempering: Low-temperature annealing to eliminate internal stress, temper to common H24/H34 state, ensure stable performance

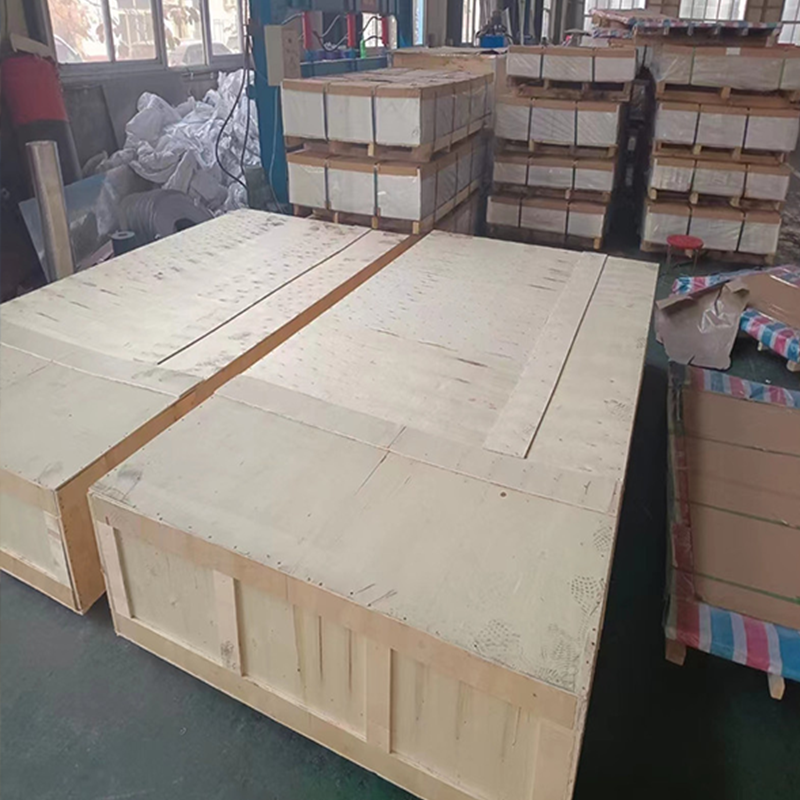

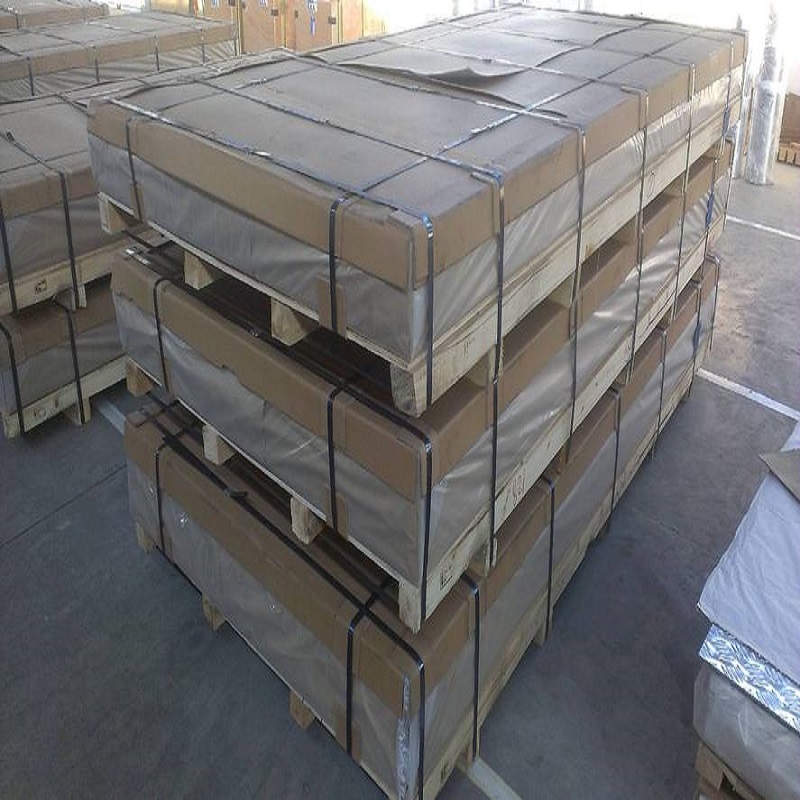

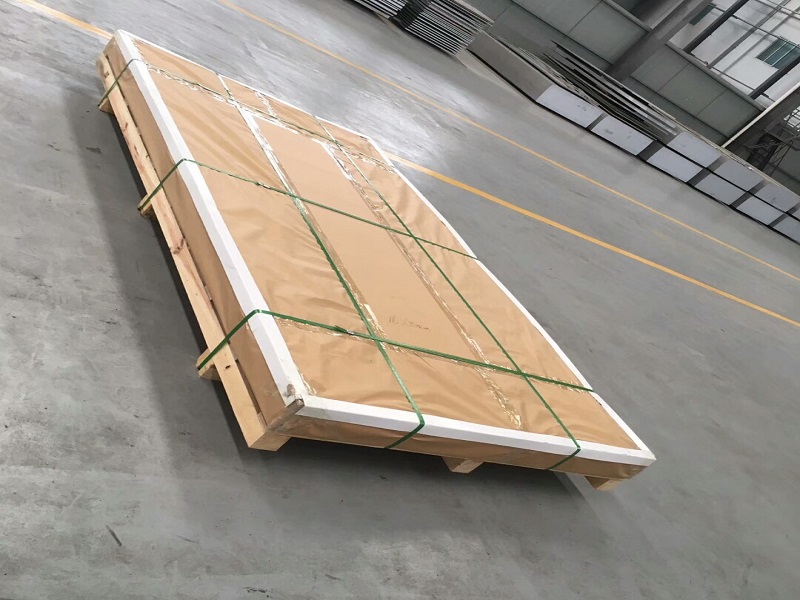

Finishing & Cutting: Edge trimming, flattening, fixed-length cutting, surface cleaning, inspection and packaging for warehousing
5.FAQ
Q1:Core difference between 3105 and 3003 aluminum sheet?
A1:3105 has better color stability & weather resistance, for building color coating; 3003 has better ductility, for containers/radiators, lower price.
Q2:Can 3105 sheet be used for food contact parts?
A2:Yes, base material meets food-grade standards, special grade for caps/cans can directly contact food, no harmful substances precipitate.
Q3:What to note for 3105 sheet storage?
A3:Store in dry & ventilated warehouse, avoid rain/sun exposure, seal color-coated sheets, stacking height ≤2.5m to prevent deformation.
Q4:What surface treatments for 3105 sheet?
A4:Color coating, anodizing, film coating, wire drawing available; PVDF coating is recommended, extend outdoor service life to over 20 years.
If you want to know more, please feel free to contact us.
