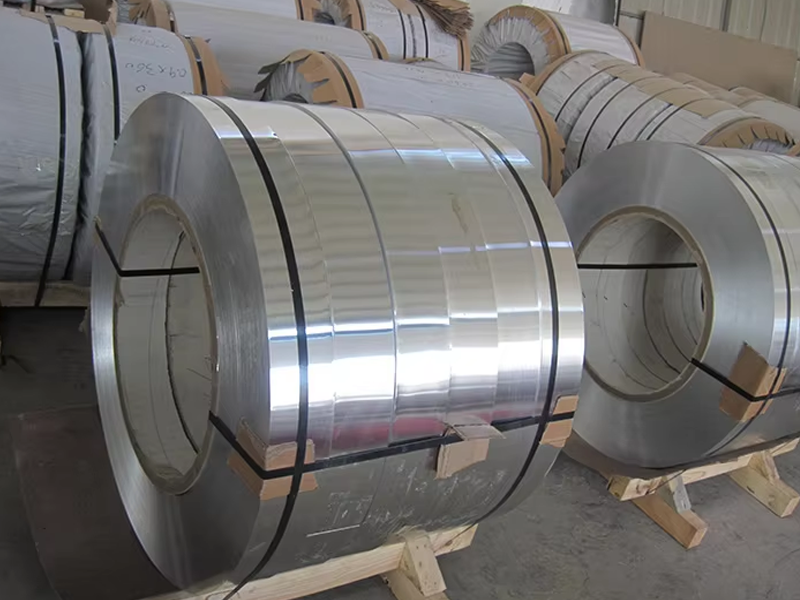

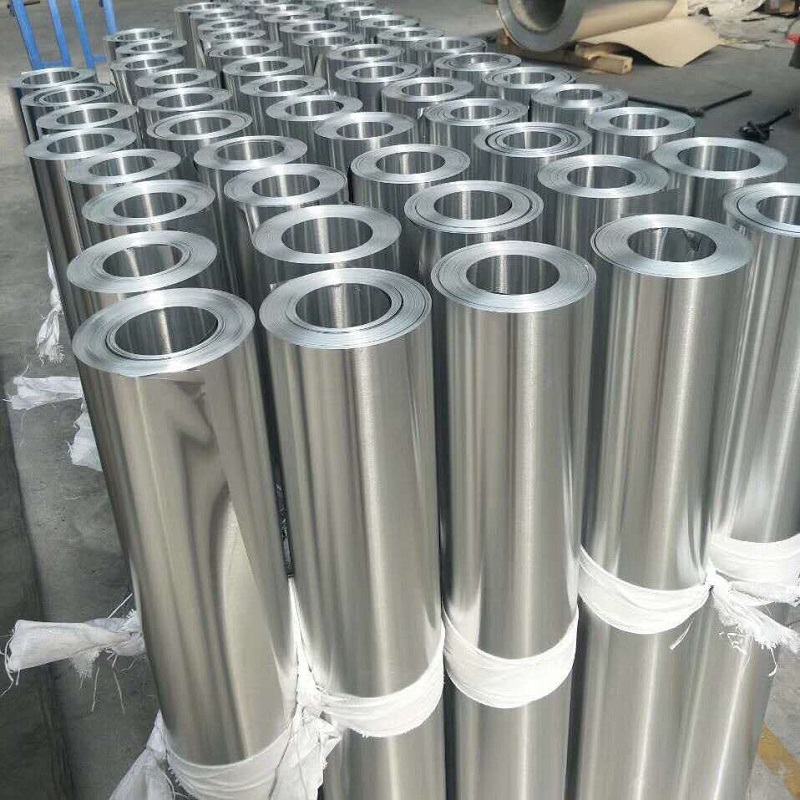

Aluminum coils
Building Decoration：Applied to curtain wall panels, roof waterproofing membranes and ceiling decorative boards, featuring both aesthetics and durability.
Automotive Manufacturing：Produce car body shells, engine heat dissipation components and wheels, helping auto lightweighting to reduce fuel consumption.
Electronics & Electrical Appliances：Manufacture precision parts such as air conditioner evaporators, refrigerator inner liners and lithium battery casings.
Packaging Industry：Processed into aluminum foil for sealed packaging of food, pharmaceuticals and cosmetics.
Transportation：Make container lining boards, ship deck anti-skid plates and high-speed rail carriage structural parts.
2.Product Advantages
Lightweight & High Strength：Density is only about 1/3 of steel, strength meets most structural needs, easy for transportation and installation.
Excellent Corrosion Resistance：A dense oxide film is easily formed on the surface, suitable for long-term use in harsh environments such as humidity, acid and alkali.
Superior Processability：Easy to cut, bend, stamp and weld, can be processed into components with complex shapes.
Good Thermal & Electrical Conductivity：Outstanding thermal and electrical conductivity, ideal for manufacturing heat dissipation and conductive products.
High Recyclability：High recovery rate and low energy consumption for reprocessing, in line with the trend of environmental protection and low carbon.
3.Technical Parameters
Parameter | Specification Range | Standard / Notes |
Alloy Grade | 1060, 3003, 5052, ASTM B209 | GB/T / EN / ASTM |
Coil Thickness | 0.2–5.0 mm | ±0.02 mm tolerance |
Coil Width | 500–1800 mm | ±1 mm tolerance |
Inner Diameter | 508 / 610 mm | Standard size |
Outer Diameter | 800–1600 mm | Custom available |
Tensile Strength | 80–300 MPa | GB/T 228.1 standard |
Hardness | HB 20–80 | After rolling |
Elongation | ≥15% | GB/T 228.1 standard |
Surface Treatment | As-rolled, Anodized | Custom: Sprayed |
4.Production process
Raw Material Melting: Melt electrolytic aluminum ingots in furnace, precisely control composition, and cast into aluminum billets
5.FAQ
Q1:Can the thickness and width of aluminum coils be customized?
A1:Customization is supported. The conventional thickness is 0.2–5.0mm and width is 500–1800mm. Special specifications can be adjusted according to customer needs.
Q2:What are the precautions for aluminum coil storage?
A2:Store in a dry and ventilated warehouse, avoid rain and exposure to sunlight; stack different alloy grades separately to prevent mixing; regularly check for oxidation spots on the surface.
Q3:Which is more suitable for auto lightweighting, aluminum coil or steel coil?
A3:Aluminum coil is more suitable. Its density is much lower than steel. Replacing steel with aluminum can significantly reduce body weight while ensuring structural strength, thus reducing auto fuel consumption.
Q4:What surface treatments can be applied to aluminum coils?
A4:Treatments such as anodizing, spraying, film coating and wire drawing are available to improve surface aesthetics and corrosion resistance, meeting the needs of different application scenarios.
If you want to know more, please feel free to contact us.
