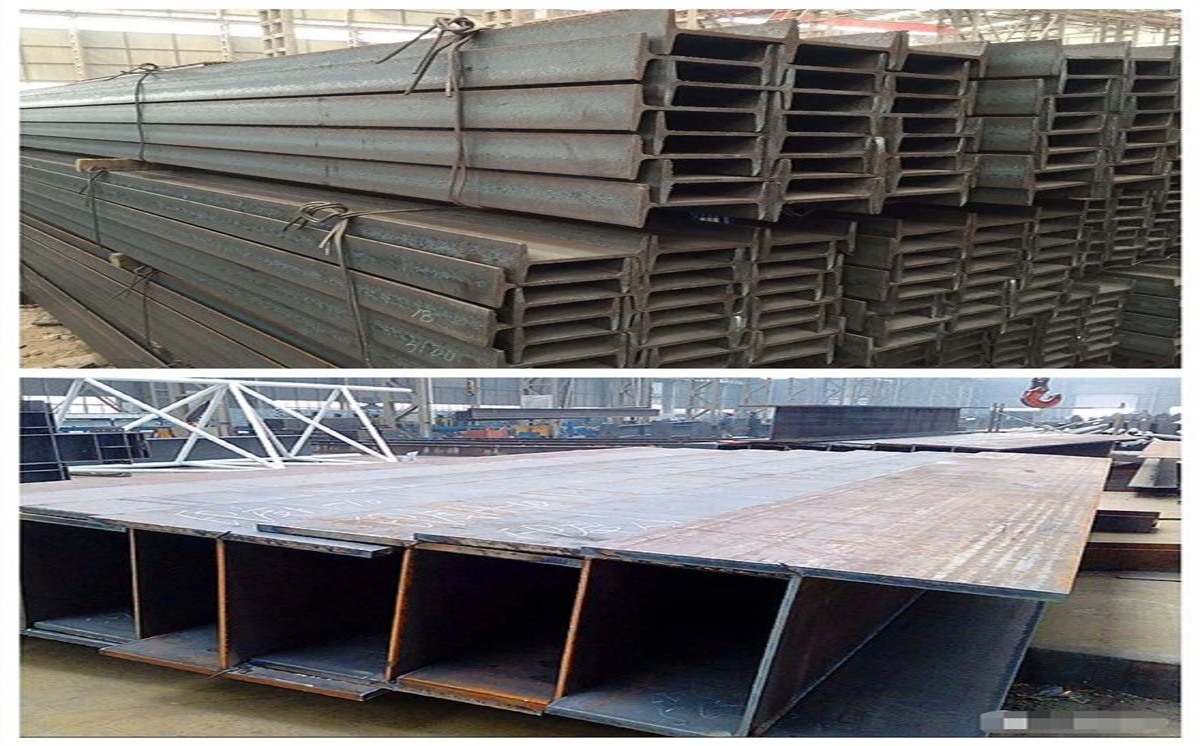

Putting an H-beam sideways does NOT make it an I-beam! These are two completely different steel sections that just happen to look a bit similar.
Think of it like this: a square and a rectangle are both four-sided shapes, but you wouldn't use them interchangeably, right? Same with I-beams and H-beams!
| Type | What You Need to Know | Simple Picture |
|---|---|---|
| I-Beam | The flanges (the top and bottom parts) are slanted on the inside – they're shorter and angled | Like a capital "I" with a tilted top |
| H-Beam | The flanges are completely straight on the inside – wider and flatter | Like a capital "H" – nice and square |
Real talk: If you look at an I-beam from the top, the edges slope inward. An H-beam? Straight as a ruler, inside and out.
| Type | Best For | Why |
|---|---|---|
| I-Beam | Horizontal loads – like a bridge or a ceiling beam | Designed to handle weight pushing down from above |
| H-Beam | Multi-directional forces – like a building column | Perfect structure distributes weight evenly in all directions |
Think of it this way:
An I-beam is like a one-trick pony – great at holding things up from above
An H-beam is like an all-round athlete – can handle pushes and pulls from any direction
| When You Need | Use This |
|---|---|
| A (horizontal beam) | I-Beam |
| A (vertical column) | H-Beam |
Simple rule:
I for "In the middle" (in the middle of floors)
H for "High strength" ( standing tall)
